Khoom Description

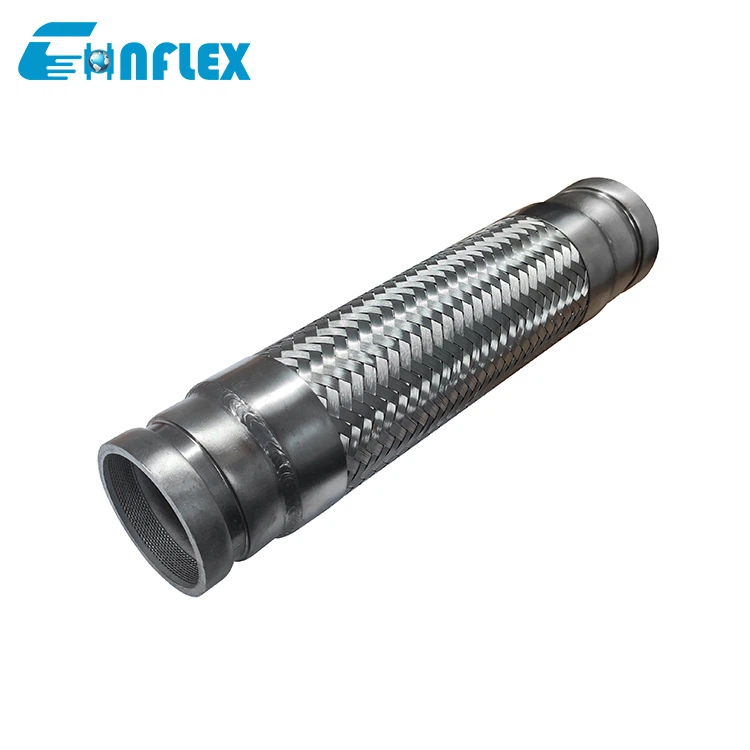

Grooved hlau braided yeeb nkab connector, tseem hu ua hlau hose sib koom los yog cua txias hlau hloov tau yooj yim sib koom, yog ib tug zoo saj zawg zog yeeb nkab nyob rau hauv niaj hnub industrial pipelines. Nws yog tsuas yog tsim los ntawm cov kav dej corrugated, lub tes tsho mesh, thiab cov pob qij txha lossis flanges, nrog rau cov yeeb nkab sab hauv yog cov yeeb nkab nyias nyias stainless hlau corrugated yeeb nkab nrog cov kauv lossis lub nplhaib. Lub txheej txheej ntawm lub corrugated raj yog woven nrog stainless hlau xaim raws li tej yam tsis, kom ntseeg tau lub durability thiab stability ntawm lub hose.
|
TSIS MUAJ |
Lub npe |
Khoom siv |
|
1 |
hauv qab |
Stainless hlau |
|
2 |
Hlau mesh |
Stainless hlau |
|
3 |
Welded yeeb nkab |
Stainless hlau |
|
Tsim kub |
-20 degree ~ +400 degree |
|
|
Ua haujlwm nruab nrab |
Chav, roj, cua, roj av, tshuaj, tshuaj, thiab lwm yam |
|
Cov yam ntxwv ua haujlwm
Qhov zoo ntawm grooved hlau braided yeeb nkab connector muaj xws li:
1. Muaj zog corrosion kuj: ua los ntawm stainless hlau cov khoom, nws muaj zog corrosion kuj.
2. Lub zog muaj peev xwm muaj peev xwm: Nyias phab ntsa stainless hlau raj lub cev yog hydraulically tsim, nrog kev kub siab bearing muaj peev xwm.
3. Zoo yooj: Kev tiv thaiv ntxiv ntawm lub tes tsho woven mesh muab lub hose zoo saj zawg zog thiab stretchability.
4. Muaj ntau txoj kev sib txuas: kev sib txuas ntawm ob qhov kawg ntawm lub hose tuaj yeem ua rau lwm txoj kev sib txuas nrog rau cov qauv xov thiab flange, uas yooj yim rau kev sib txuas thiab siv.
Khoom Specification
|
Nominal |
Sab hauv txoj kab uas hla |
Sab nraud txoj kab uas hla |
Yam tsawg kawg bending radius |
Ua hauj lwm siab |
|||
|
txoj kab uas hla DN |
(mm) |
Corrugated hose |
Nrog lub network teeb |
Static |
Dynamic |
ib network set |
ob lub network teeb |
|
8 |
8.8 |
13.2 |
14.4 |
50 |
110 |
15 |
20 |
|
10 |
11.7 |
16.5 |
17.7 |
65 |
145 |
15 |
20 |
|
15 |
13.5 |
19.5 |
21.1 |
80 |
180 |
15 |
20 |
|
20 |
20 |
27 |
28.6 |
120 |
270 |
10 |
15 |
|
25 |
27 |
34.5 |
36.1 |
160 |
360 |
63 |
10 |
|
32 |
32 |
40 |
41.6 |
175 |
400 |
40 |
63 |
|
40 |
39.6 |
52 |
53.6 |
225 |
510 |
40 |
63 |
|
50 |
49.7 |
62 |
63.6 |
280 |
640 |
30 |
50 |
|
65 |
61.2 |
80.2 |
81.8 |
410 |
915 |
30 |
50 |
|
80 |
79 |
96.3 |
97.9 |
486 |
1030 |
30 |
50 |
|
100 |
101.2 |
119.6 |
121.2 |
610 |
1340 |
25 |
40 |
|
125 |
124.1 |
145.3 |
146.9 |
700 |
1540 |
25 |
40 |
|
150 |
149.4 |
180.8 |
182.4 |
810 |
1780 |
25 |
40 |
|
200 |
176 |
240 |
243.2 |
1000 |
2000 |
25 |
40 |
|
250 |
248 |
290 |
294 |
1250 |
2500 |
25 |
40 |
|
300 |
298 |
350 |
354 |
1500 |
3000 |
16 |
25 |
|
350 |
347.6 |
400 |
404.8 |
1750 |
3500 |
16 |
25 |
|
400 |
397.6 |
460 |
464.8 |
2000 |
4000 |
16 |
25 |
Lus Cim: Yog tias qhov nruab nrab yog cov roj, acidic lossis alkaline, thiab muaj cov kev cai tshwj xeeb rau kev ua haujlwm kub, koj tuaj yeem kho nws los ntawm kev xa ntawv lossis kos duab. Thov qhia thaum xaj.
Khoom Paub meej
Qhuav Flow
Daim ntawv thov
Kev siv cov grooved hlau braided yeeb nkab connectors npog ntau yam kev lag luam thiab teb, dav siv nyob rau hauv ntau yam xws li tshuaj lom neeg kev lag luam, petrochemical kev lag luam, khoom noj khoom haus kev lag luam, tshuaj kev lag luam, dej phwj kho kev lag luam, thiab lwm yam.
